Cantilever Slitter & Rewinder

Accusplice Canti

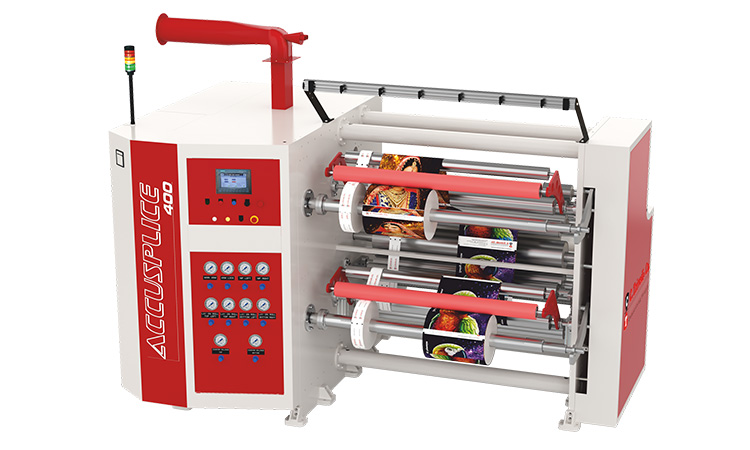

Cantilever Differential Slitter Rewinder

The accusplice duplex shaft Slitter Rewinder is a Cantilever type which incorporates a range of superior design feature that ensures highest possible quality for the final split roll Independent rewind tension control through non contact ultra sonic techniques for diameter measurement and unique core lock for differential slip at running speed. The design incorporate the three motor control system & unwind pneumatic brake with load cell feed brake Digital Edge/line guiding to achieve high speed correction.

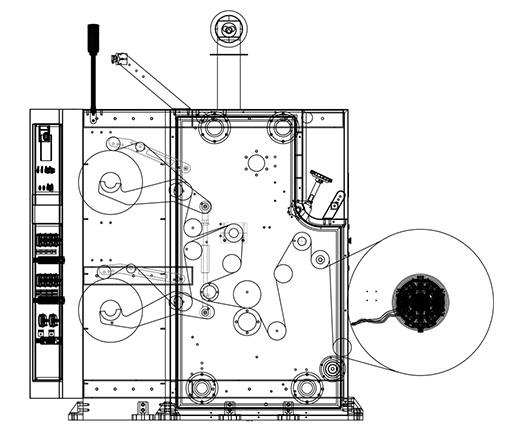

Cantilever Differential Slitter Rewinder
UNWINDER

Shaftless Type heavy duty Unwinder complete with core facility of 76mm & 150mm Core, fitted with pneumatic brake and Load cell actuated by latest Line Guide System.

SLITTING UNIT

Type of slitting: Razor in groove/circular rotary slitting system.
One full width capacity grooved roller. Trim removal system: Blower with full width Pipe for trimming along with a trim Injector unit.
Quick and easy system for change over from one slitting mode to another and from one slit width to another.

LASER CORE ALIGNMENTS

Assembly Fitted on top of the rewind shaft to indicate the position of new core to get exact finish size on every roll change over.

NIP UNIT

One full width capacity hard chrome plated steel roller of 150mm diameter. One full width capacity rubber roller of 150 mm diameter. Pressure is pneumatically applied from the operation side of the machine and this unit is controlled by servo motor.

TECHNICAL SPECIFICATION
  • Max working Width: 800/ 1600
  • Unwind dia: 1000mm
  • Rewind dia: 450
  • Min Slitting width: 50mm
  • M/C Speed: 350/400 MPM
OPTIONAL
  • Circular knife attachment
  • Motorized invaders
REWINDER

Type of Rewinding: Duplex Cantilever Differential Air Shaft for Winding with pneumatic pressure to maintain slip edge of rewind roll through digital E/P converter with indicator and Ultra-sonic sensor to maintain rewind dia / pneumatically controlled lay on roller operator friendly remote control panel provided at rewind for electrical and pneumatic system.

1 Nos. Common Servo Motor provided for both rewinder.
