Extrusion Coating Lamination
NEXTRUSION ECL 300
Extrusion Coating Lamination
C. Trivedi & Co is one of the reputed manufacturers & suppliers of converting machineries like Rotogravure Printing machine, various type of Coating Lamination machine and Slitting & rewinding machine since 1980. Our Esteemed & Satisfied Clientele across the world has encouraged us to develop the new ECL. With more than 5 decades of experience in Designing & manufacturing along with technically qualified team, C. Trivedi & Co has developed the latest ECL for the utmost benefit of its users.

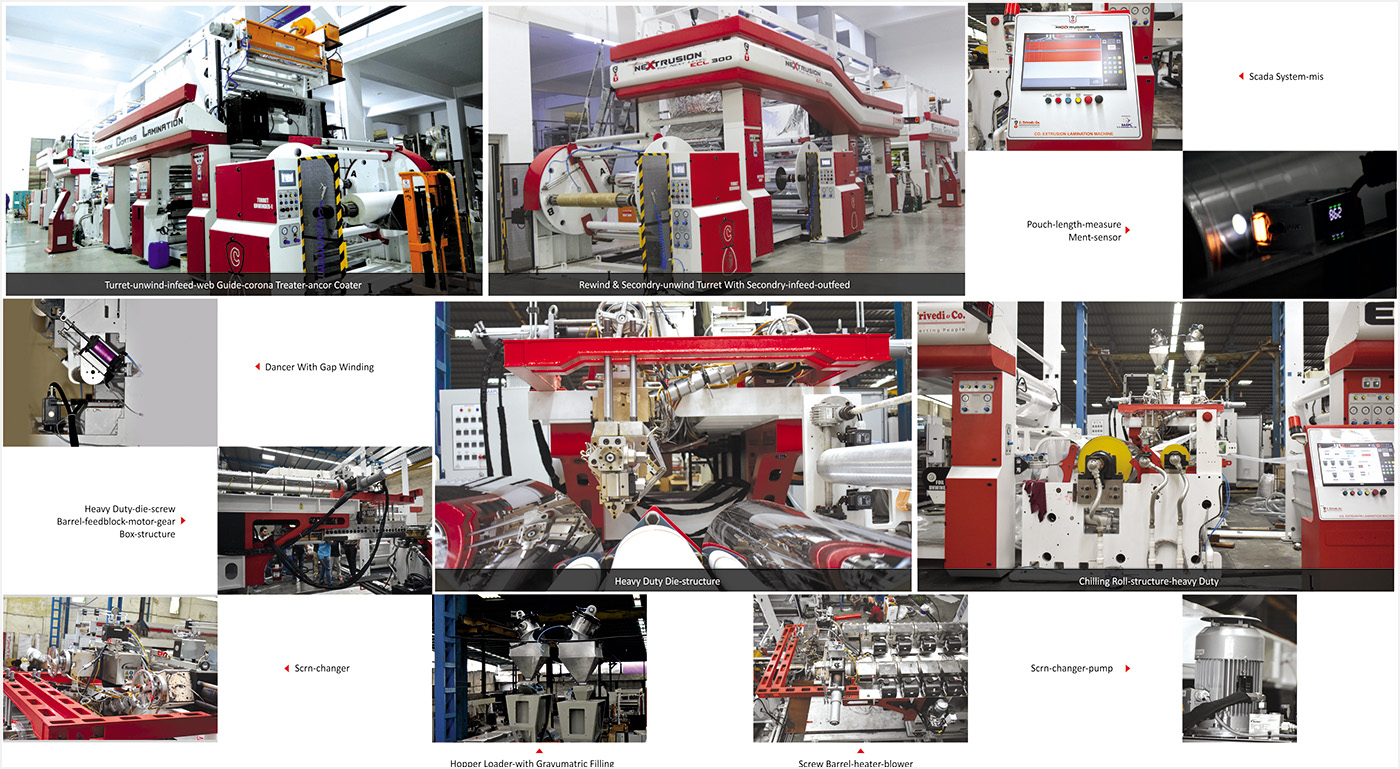

Introducing Nextrusion ECL 300 - the latest, next level Extrusion Coating & Lamination machine for flexible packaging industries.
SALIENT FEATURES
- Actual production speed of 250mpm.
- Linear splice @ maximum speed of unwind & rewind ensures handling of all critical substrates.
- Center and Gap winding at rewind.
- Foil unwinder close to composite unit.
- Tension range from 30N-600N ensures handling of higher thickness range.
- Positive nip isolation at unwind & rewind ensures to achieve optimum process web handling as per process requirement.
- High efficient anchor coating station.
- Edge guide system for both unwind & rewind.
- Rigid and vibration less Servo based X, Y and Z movement of co-Extruder ensures recall of die to original position of stored job.
- Programable die oscillation ensures much efficient edge width control.
- 2 Extruder 3 layer with feed block combination ABA, BAB, AAB, BBA and run of either Extruder.
- Easily web wrap angle control in and out of composite / laminating unit.
- Close loop load cell based GPM control of Extrusion section.
- Close loop precise dancer based and load cell based control web handling by use of latest servo motion drive.
- Repeat length measurement.
- Static monitoring at rewind.
- SCADA based machine control ensures one touch recall of all process parameters and MIS.
- Remote support via internet.

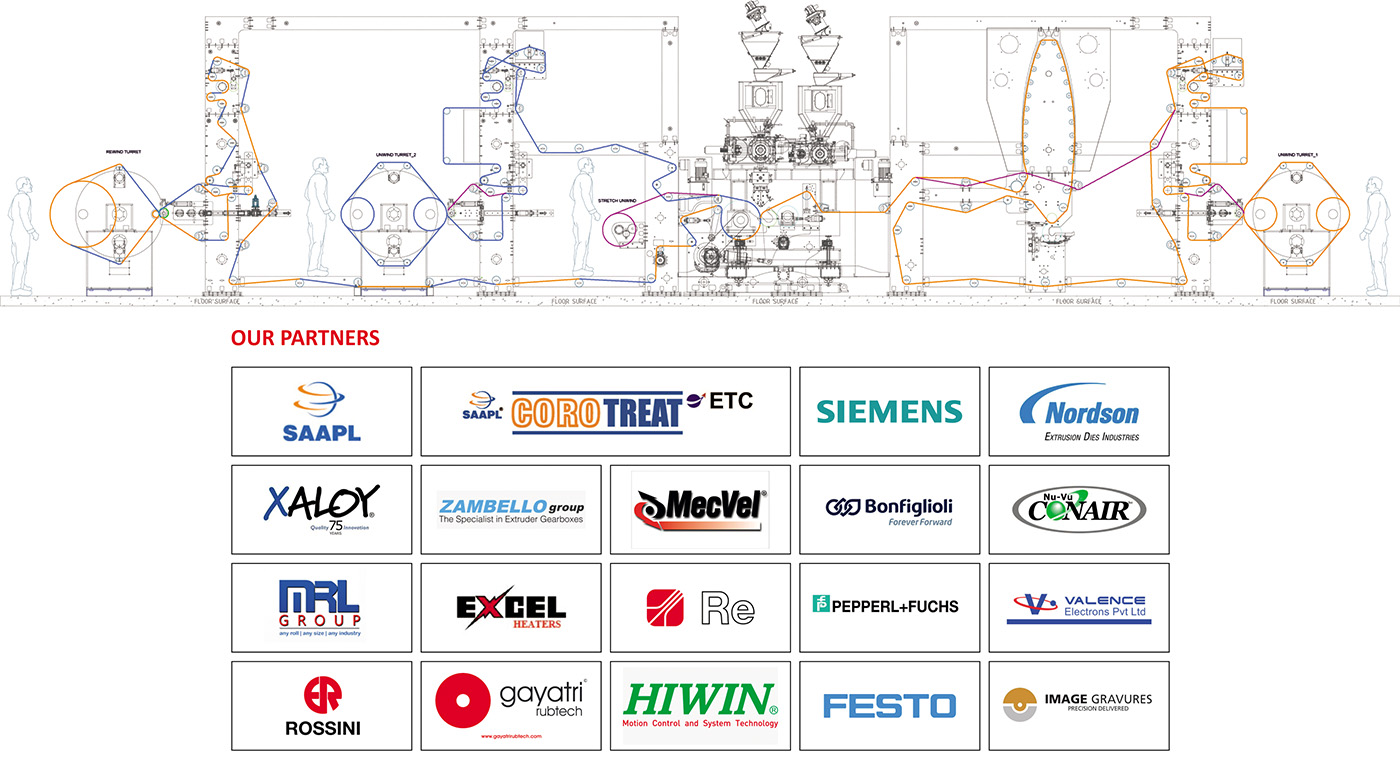

MANY OTHER FEATURES ARE EXISTED... MAJOR BRAUGHT OUT ITEMS
- Actual production speed of 250mpm.
- Linear splice @ maximum speed of unwind & rewind ensures handling of all critical substrates.
- Center and Gap winding at rewind.
- Foil unwinder close to composite unit.
- Tension range from 30N-600N ensures handling of higher thickness range.
- Positive nip isolation at unwind & rewind ensures to achieve optimum process web handling as per process requirement.
- High efficient anchor coating station.
- Edge guide system for both unwind & rewind.
- Rigid and vibration less Servo based X, Y and Z movement of co-Extruder ensures recall of die to original position of stored job.
- Programable die oscillation ensures much efficient edge width control.
- 2 Extruder 3 layer with feed block combination ABA, BAB, AAB, BBA and run of either Extruder.
- Easily web wrap angle control in and out of composite / laminating unit.
- Close loop load cell based GPM control of Extrusion section.
- Close loop precise dancer based and load cell based control web handling by use of latest servo motion drive.
- Repeat length measurement.
- Static monitoring at rewind.
- SCADA based machine control ensures one touch recall of all process parameters and MIS.
- Remote support via internet.
Provision For
• Thickness measurement.
• Die is upgredeable and integration with thickness measurement control.
• Provision for powder spray.
