D.G. Lacquer Coating

Specialized Product

D.G. Lacquer Coating

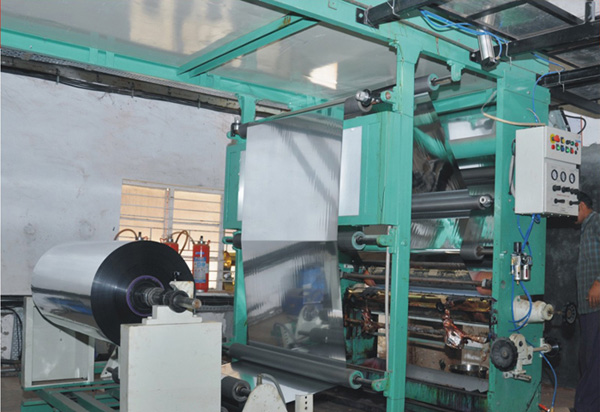

C. Trivedi has developed special type D.G. Lacquer Coating for getting optimum quality of lacquer coating evenness and with sophisticated control and tension control system to get quality of coating of high speed to get maximum production.

TECHNICAL SPECIFICATION
  • Web width: 800 – 2400mm
  • Unwind / rewind dia.: 800 – 1200 mm
  • Machine speed: 150 / 200 M/ min
  • Heat source: Hot air generator / Thermic fluid / Radiator & blower
  • Exhaust: 7.5 HP (Individual for each zone / programmable optional)
  • Chilling roll: 150 dia.

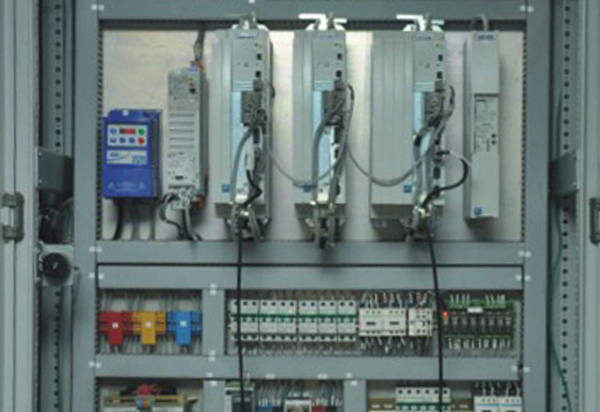

  • Tension control: For unwind & synchronized drive for coater, nip & positive drive
  • Materials to be coated: Polyester,BOPP,PVC,foil
OPTIONAL
  • Air shaft
  • In-feed drive
  • Ink circulation with viscosity control
  • Programmable exhaust with PID
  • Ultrasonic web guide
