Rotogravure Printing Machine
GRAPHICA HIGH SPEED MLS / ELS

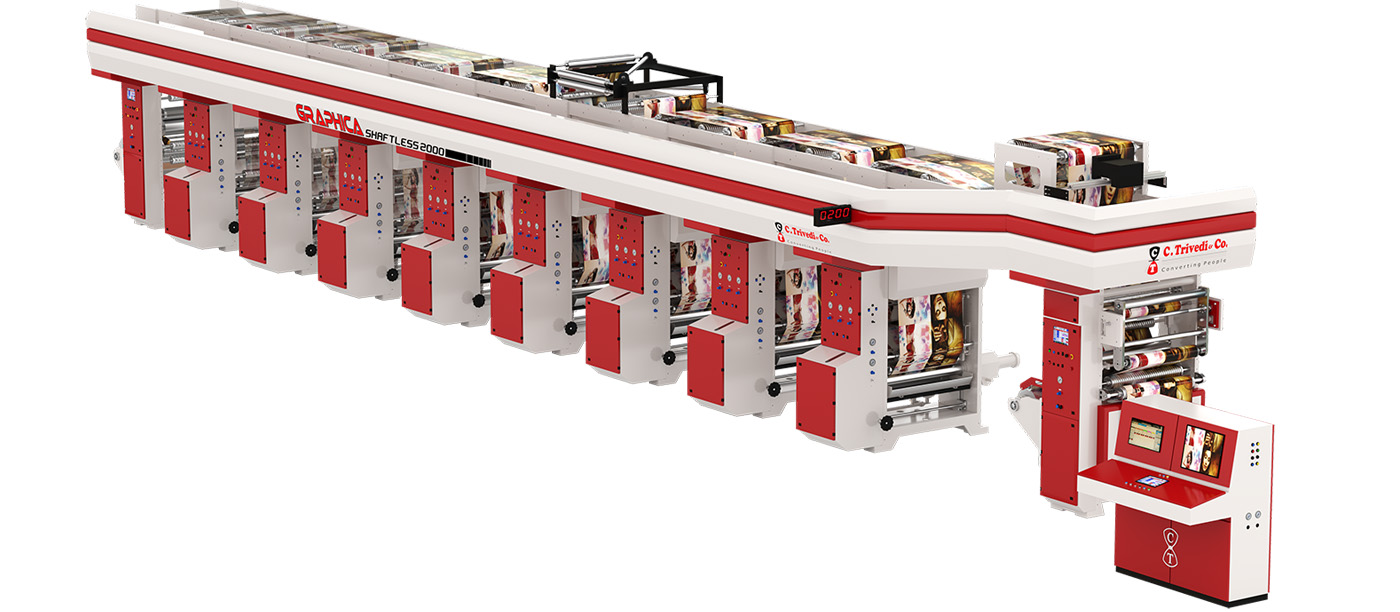

Rotogravure Printing Machine 2500 Shaft Less
C. Trivedi has successfully make Graphica 2500 series &it's working satisfactory from last so many years.
C. Trivedi has given the machine with shafted cylinder design successfully now they have introduce this series with shaftless design.
This series can be also supply with shafted and ELS optional also.
Salient Features
- Modular Printing Station each being complete in itself for easy adoptability of extra station when required
- Specially designed compensator roll with ball screw to achieve extra-fine registration
- All rollers are dynamically balanced to ensure noise and vibration free operation for accurate printing
- The unique design of the impression roller ensures even application of pressure across the entire width of the substrate
- Closed type single side drying oven & special type one & one type counter flow arrangement for exhaust and air blowing to get high speed drying
- Individual control panel at each station for all electrical controls & pneumatic system
- 5 Drive Servo motor and drive base web tension control system with dancer roll feedback & loadcell sensing for infeed & outfeed, Unwind & Rewind Synchronized with main motor
- Auto Registration Control system for horizontal & vertical both.

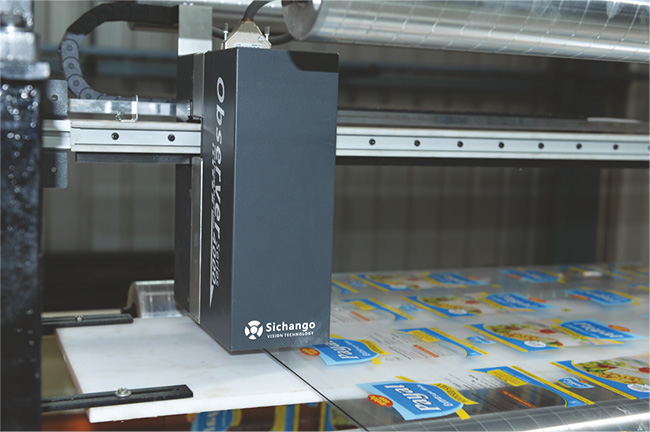

Motorized Web Video Inspection System
with Traverse Bar Mounting

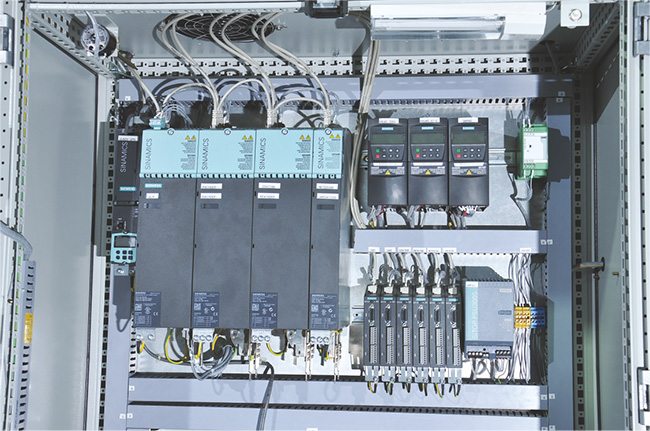

Digital Servo Drive & Panel From
SAAPL Automation

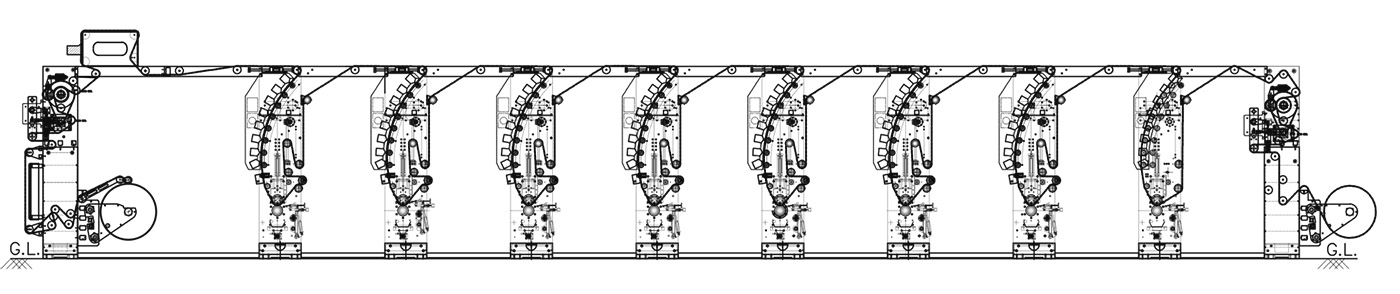

Layout Drawing For 8 Colour Rotogravure Printing Machine Standard-SHAFT LESS Model
Technical Specification
- Maximum Web width : 800 / 1000 / 1200mm
- Maximum operating Speed : 200 MPM
- Print Repeat Range : 450 to 1000mm (1200mm on demand)
- Dimension of Printing Station : 600 x 2500 x 65mm
Optional Attachment
• 7 Drive with Turret
