Rotogravure Printing Machine Standard

C. Trivedi & Co. has introduce 2 variant in Standard Model one for flexible packaging market standard 1 Model / Standard 2 Model for newly expand BOPP market for woven fabrics.
C. Trivedi still make Economical Printing Machine also up to 100 MPM for Shrink PVC, Foil & Best for New Comers.
Upto 10 colour Rotogravure Printing machine featuring top performance machine and efficiency to the growing demand.
Incorporate devices to facility for production process increasing machine output. Modular printing station each being complete in itself for easy adoptability of extra station when required.

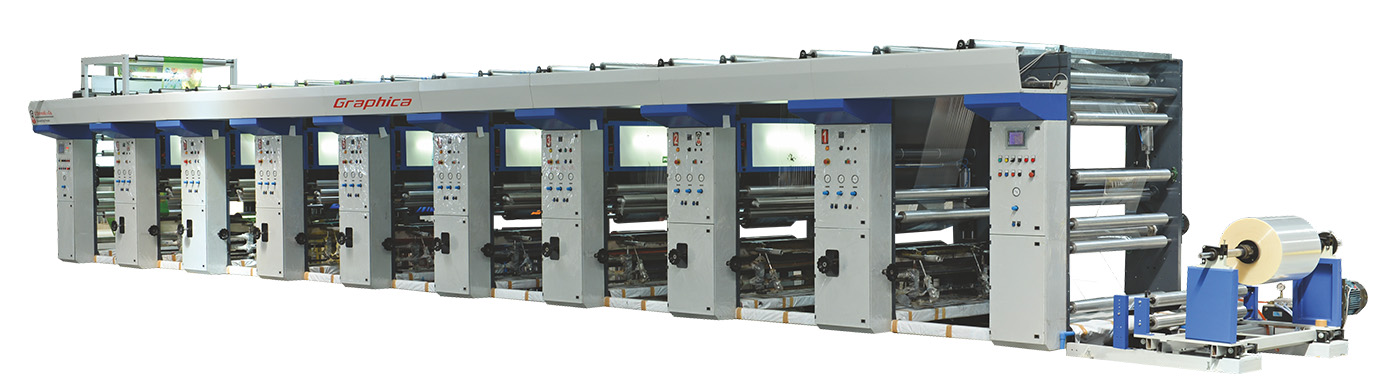

Standard rotogravure printing machine

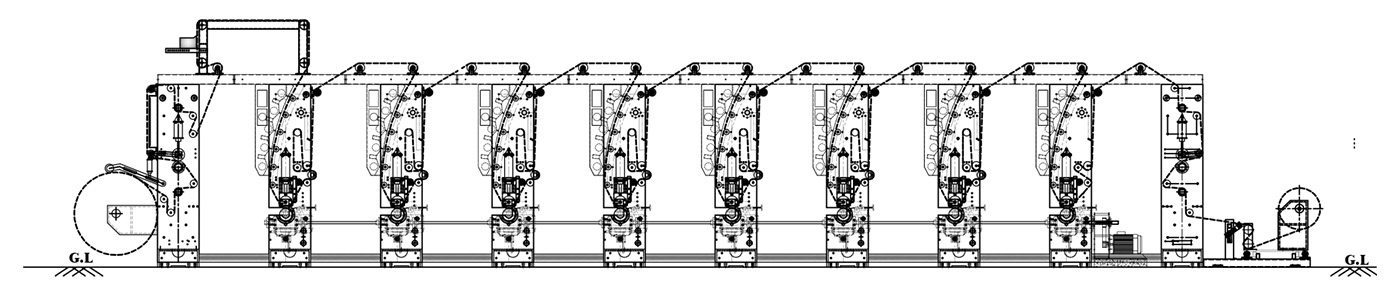

Rotogravure Printing Machine

GRAPHICA STANDARD - Video

PRINTING HEAD
  • Cast iron plate with individual foundation base
  • Shanthi Make Spiral Level gearbox with profile hardened & ground specially develop
  • Festo make pneumatic cylinder & panels for imp. Rollers doctor blade
  • Linear ball screw assembly fitted with special gear box for registration control (motorized)
  • Efficient drying chamber system with one & one counter air flow inlet & equally distributed exhaust (With Pneumatic opening
  • Individual inspection box facility on each station
  • Anytime upgrade for auto registration control system. (Mechanically update)
Optional Attachment

• Auto Registration System
• 5 Drive System with In feed, Outfeed station complete
• Web video scope system
• Air shaft 76mm / 150mm
• Servo Drive & Motor
• Unwind Rewind: Shaft Less

UNWIND STATION

Movable type linear bearing unwind with Ultrasonic web guide & Tension Control System.

REWINDING

Auto Tension Control for rewind station with load cell
